Product range
Pump series catalogue
Centrifugal slurry pumps, FGD pumps, gravel pumps, multistage pumps, chemical pumps and wear parts. Flow, head and motor power ranges are taken directly from the printed catalogue.
-
ZJ / ZJL
ZJ / ZJL Series Slurry Pump
Flow range
4 – 2,330 m³/h
Head range
9 – 133 m
Motor power
0.55 – 800 kW
View series
-
ZGB
ZGB Series Slurry Pump
Flow range
38 – 1,920 m³/h
Head range
24 – 94 m
Motor power
11 – 710 kW
View series
-
ZJD
ZJD Series Single-Casing Slurry Pump
Flow range
10 – 16,000 m³/h
Head range
5 – 160 m
Bore
25 – 1,000 mm
View series
-
AH / HH
AH / HH Series Slurry Pump
Flow range
2 – 2,772 m³/h
Head range
4 – 97 m
Motor power
15 – 1,200 kW
View series
-
AHR
AHR Series Rubber-Lined Slurry Pump
Flow range
12 – 6,000 m³/h
Head range
5 – 50 m
Bore
25 – 500 mm
View series
-

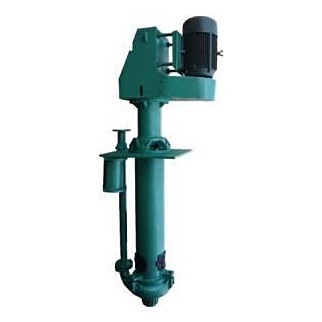

SP / SPR
SP / SPR Series Vertical Sump Slurry Pump
Flow range
17 – 1,360 m³/h
Head range
4 – 50 m
Bore
40 – 300 mm
View series
-
LR
LR Series Light-Duty Rubber-Lined Slurry Pump
Flow range
25 – 14,000 m³/h
Head range
4 – 50 m
Bore
20 – 750 mm
View series
-
L
L Series Light-Duty Alloy Slurry Pump
Flow range
25 – 15,000 m³/h
Head range
4 – 68 m
Bore
20 – 750 mm
View series
-
HH-HP
HH-HP Series High-Head Slurry Pump
Flow range
5 – 900 m³/h
Head range
15 – 95 m
Bore
25 – 150 mm
View series
-
TCB
TCB Series Ceramic Slurry Pump
Flow range
10 – 16,800 m³/h
Head range
5 – 80 m
Bore
25 – 1,000 mm
View series
-

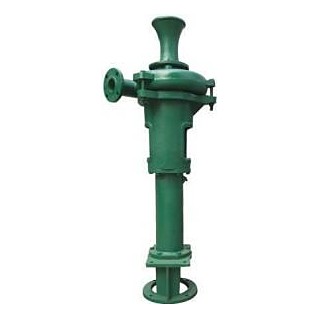

PN / PNL
PN / PNL Series Mud Pump
Flow range
7.2 – 1,600 m³/h
Head range
12 – 91.8 m
Motor power
3 – 780 kW
View series
-
ZISG
ZISG Series Vertical Pipeline Slurry Pump
Flow range
30 – 5,000 m³/h
Head range
10 – 75 m
Bore
50 – 400 mm
View series
-
SPA / SPB
SPA / SPB Series Filter Press Feed Pump
Flow range
10 – 6,000 m³/h
Head range
5 – 75 m
Bore
50 – 500 mm
View series
-
DT / DTL
DT / DTL Series FGD Slurry Pump
Flow range
4.3 – 9,700 m³/h
Head range
1.4 – 88.6 m
Motor power
4 – 900 kW
View series
-
TL(R)
TL(R) Series Desulfurization Pump
Flow range
10 – 16,000 m³/h
Head range
5 – 60 m
Bore
25 – 1,000 mm
View series
-
G / GH
G / GH Series Gravel Pump
Flow range
36 – 3,420 m³/h
Head range
7 – 65 m
Bore
25 – 1,000 mm
View series
-
PW / PWL
PW / PWL Series Sewage Pump
Flow range
36 – 700 m³/h
Head range
8.5 – 48.5 m
Motor power
4 – 75 kW
View series
-

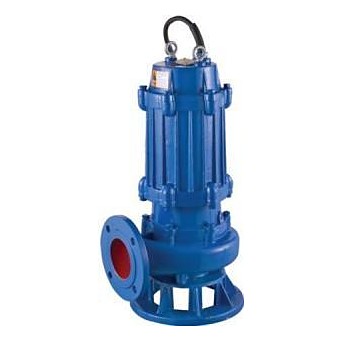

WQ / QW
WQ / QW Series Submersible Sewage Pump
Flow range
7 – 2,650 m³/h
Head range
7 – 36 m
Motor power
0.55 – 315 kW
View series
-

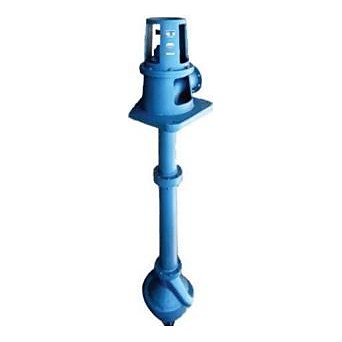

LP
LP Series Vertical Drainage Pump
Flow range
3 – 750 m³/h
Head range
7.8 – 57 m
Motor power
1.1 – 160 kW
View series
-
PNJ / PNJF
PNJ / PNJF Series Rubber-Lined Slurry Pump
Flow range
12 – 400 m³/h
Head range
11.5 – 43 m
Motor power
3 – 75 kW
View series
-
WFB
WFB Series Self-Priming Pump
Flow range
0.75 – 2,050 m³/h
Head range
5 – 133 m
Motor power
0.75 – 315 kW
View series
-
IS / ISR
IS / ISR Series End-Suction Centrifugal Pump
Flow range
6.3 – 400 m³/h
Head range
5 – 125 m
Motor power
1.1 – 110 kW
View series
-
ISG / ISW
ISG / ISW Series Pipeline Pump
Flow range
1 – 720 m³/h
Head range
8 – 150 m
Motor power
0.12 – 110 kW
View series
-
D / DG
D / DG Series Multistage Centrifugal Pump
Flow range
3.75 – 500 m³/h
Head range
55 – 684 m
Motor power
55 – 1,050 kW
View series
Not sure which series fits?
Send the flow, head, medium, solids concentration and temperature. Our engineers will shortlist two or three series and confirm the wetted-part material.
