Pump family
Multistage & Boiler Feed Pumps
Segmental multistage pumps for mine drainage, boiler feed and high-head water supply, to 2,070 m of head.
-
D / DG
D / DG Series Multistage Centrifugal Pump
Flow range
3.75 – 500 m³/h
Head range
55 – 684 m
Motor power
55 – 1,050 kW
View series
-

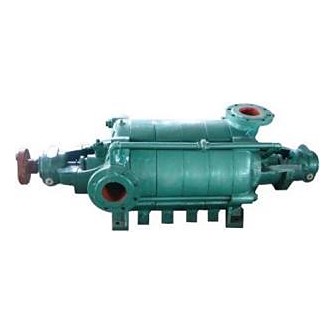

DA
DA Series Multistage Centrifugal Pump
Flow range
10.8 – 345.6 m³/h
Head range
14 – 351 m
Motor power
2.2 – 500 kW
View series
-
DL
DL Series Vertical Multistage Pump
Flow range
4 – 120 m³/h
Head range
18 – 261 m
Motor power
1.1 – 132 kW
View series
-

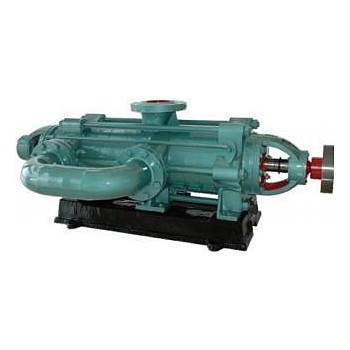

ZD / ZDG
ZD / ZDG Series Self-Balancing Multistage Pump
Flow range
7.5 – 864 m³/h
Head range
46 – 2,070 m
Patents
six national patents on the series
View series
-

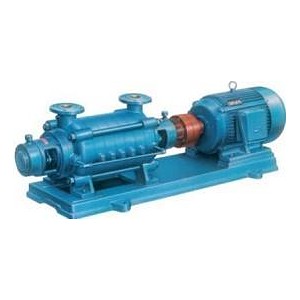

GC
GC Series Boiler Feed Pump
Flow range
6 – 55 m³/h
Head range
46 – 430 m
Motor power
3 – 110 kW
View series
-

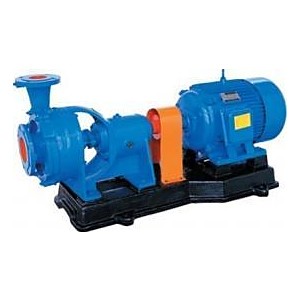

N
N Series Condensate Pump
Flow range
8 – 120 m³/h
Head range
37.7 – 143 m
Motor power
5.5 – 75 kW
View series
Need a different duty point?
Special designs and material changes can be quoted for non-standard installations. Send us the installation conditions and medium analysis.
