ISG / ISW
ISG / ISW Series Pipeline Pump
Vertical in-line and horizontal pipeline pumps for building services, heating and cooling circuits.
- Flow range
- 1 – 720 m³/h
- Head range
- 8 – 150 m
- Motor power
- 0.12 – 110 kW
- Medium temperature
- up to 80 °C (ISW)
- Design standardJB/T53058-93
- Family Clean Water & Pipeline Pumps
Series overview
The ISG is a vertical in-line pipeline pump that installs directly into the pipework, using the same hydraulic data as the IS end-suction range. From the base design, derivative builds cover hot water, high temperature, chemical and oil duties.

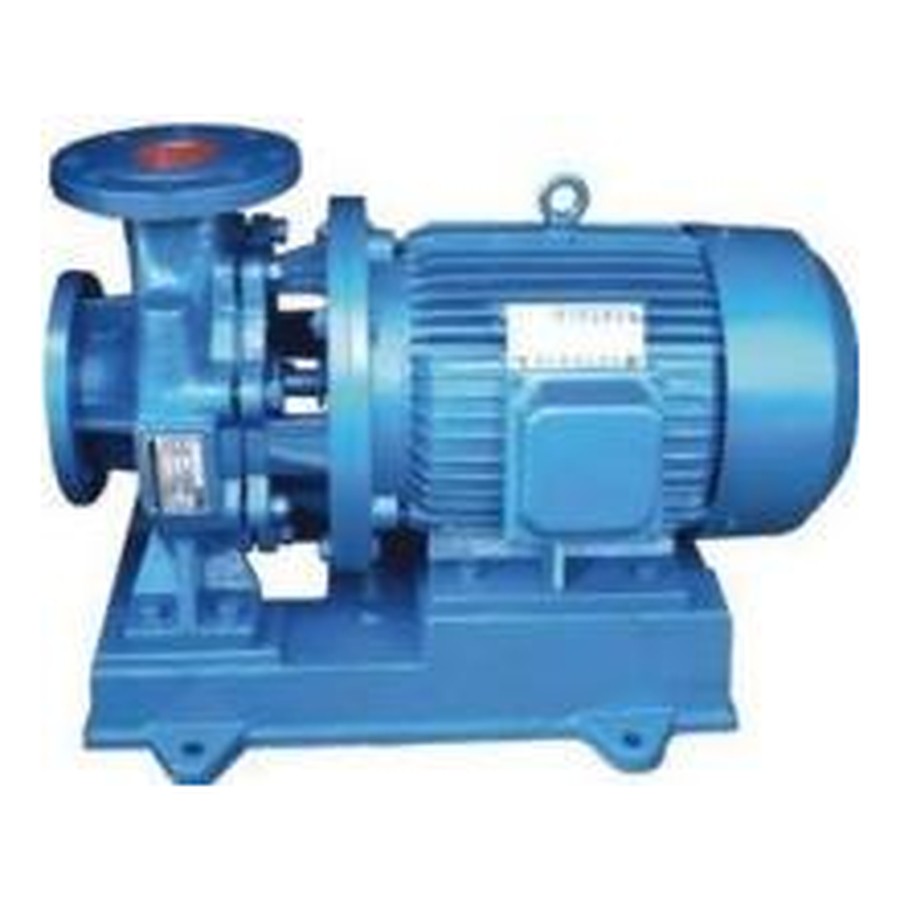

ISW is the horizontal version for plant rooms, high-rise booster sets, irrigation, fire protection, long-distance transfer and heating or cooling circulation at up to 80 °C.
Design features
- ISG vertical in-line body mounts directly into the pipe run
- ISW horizontal version for plant rooms and long runs
- Derivative builds for hot water, high temperature, chemical and oil duty
- Low noise and reliable operation for building services
Specifications
| Flow range | 1 – 720 m³/h |
|---|---|
| Head range | 8 – 150 m |
| Motor power | 0.12 – 110 kW |
| Medium temperature (ISW) | up to 80 °C |
| Design standard | JB/T53058-93 |
| Configuration | ISG vertical in-line; ISW horizontal pipeline |
| Variants | Hot-water, high-temperature, chemical and oil derivatives of the ISG |
Ranges are taken from the printed catalogue. Final selection depends on the duty point, slurry density and site conditions — share your data and we will confirm the model.
Typical duties
- High-rise building water supply
- Booster sets
- Heating and cooling circuits
- Fire protection
- Irrigation and fountains
