PARTS
Wear Parts and Spare Components
Impellers, volute liners, throat bushes, clamp bands, bearing assemblies and shaft components held to the original drawing.
- Components
- Impeller, volute liner, front and rear liner, clamp band
- Also supplied
- Bearing assembly, shaft, gland and seal components
- Castings
- Produced in our own foundry
- Wetted partsHigh-chrome and wear-resistant iron castings, rubber linings, ceramic where specified
- Family Wear Parts & Spares
Series overview
A slurry pump is only as good as its next set of wear parts. Impellers, volute liners, front and rear liners, clamp bands and ribbed liners are cast in our own foundry to the original drawing, so the material grade and heat treatment stay under our control rather than being bought in against a sample.
Impellers are balanced before dispatch and bearing assemblies are supplied complete, which keeps a change-out inside a normal maintenance window. Send the pump model and serial number and we will quote the wear-part kit.
Design features
- Replacement parts are produced to the original drawing, not reverse-engineered
- Cast in our own foundry, so material grade and heat treatment are controlled in-house
- Impellers are balanced before dispatch
- Bearing assemblies supplied complete for fast change-out
- Wear-part kits can be quoted against the pump serial number
Specifications
| Impeller | Cast wear-resistant alloy, statically and dynamically balanced |
|---|---|

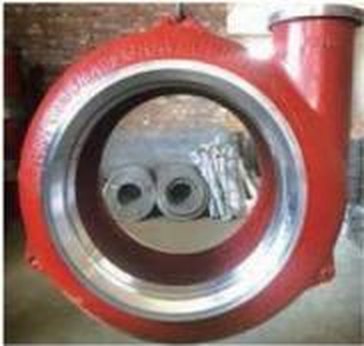

| Volute liner | Replaceable, bolts to the casing |

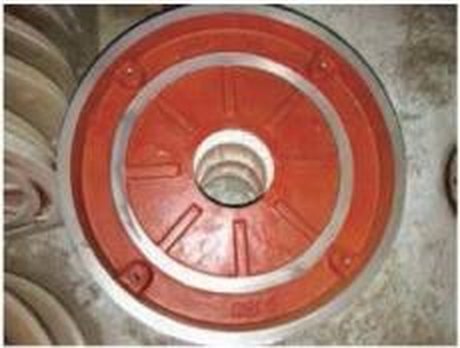

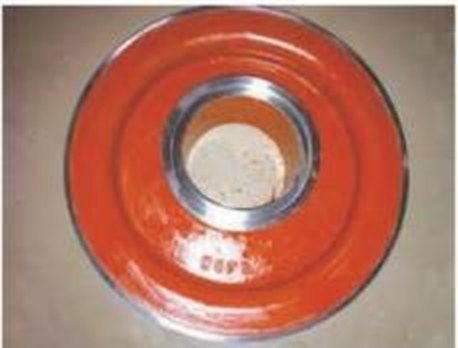

| Front and rear liners | Replaceable wear plates on the suction side |

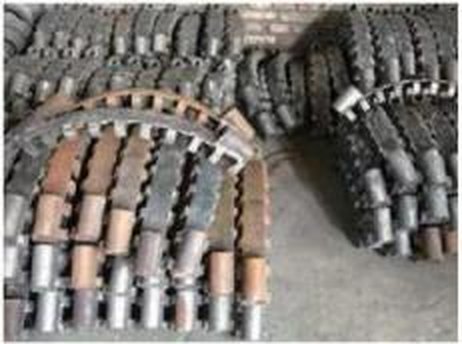

| Clamp band | Retains the split casing on gravel and slurry pumps |

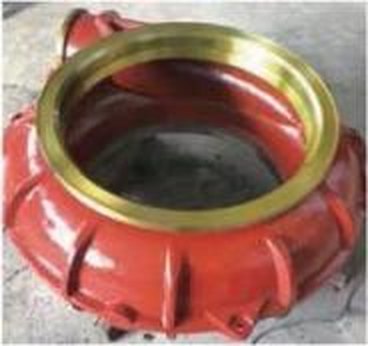

| Ribbed liner | Reinforced liner for high-wear zones |

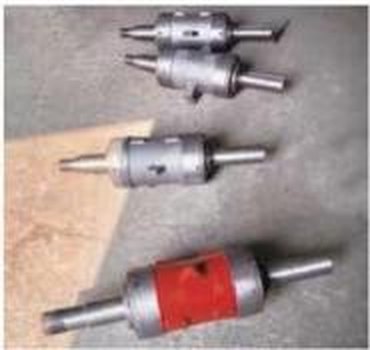

| Bearing assembly | Complete cartridge for workshop or field replacement |
| Casting source | In-house foundry |
Ranges are taken from the printed catalogue. Final selection depends on the duty point, slurry density and site conditions — share your data and we will confirm the model.
Typical duties
- Slurry pump overhaul
- Gravel pump re-lining
- Scheduled wear-part replacement
- Emergency spares
